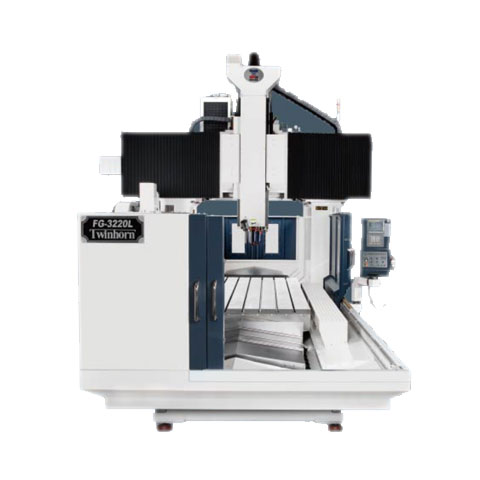

FG Serisi
| Model | Unit | FG-2215/LG | FG-2715/LG | FG-3215/LG | FG-4215/LG | FG-2220/LG | FG-2720/LG | FG-3220/LG | FG-4220/LG |
|---|---|---|---|---|---|---|---|---|---|
| Kolonlar arası uzaklık | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| x ekseni hareket | mm | 2200 | 2700 | 3200 | 4200 | 2200 | 2700 | 3200 | 4200 |
| y ekseni hareket | mm | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 | 2000 | 2000 |
| z ekseni hareket | mm | 760 | 760 | 760 | 760 | 1000 | 1000 | 1000 | 1000 |
| Spindle-Tablamesafesi(Lserisi) | mm | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 | Bt40 : 165 -1165. Bt50 : 150 ~ 1150 |
| (LGserisi) | mm | 225-985 | 225-985 | 215-975 | 215-975 | 225-1225 | 225-1225 | 225-1225 | 225-1225 |
| WORK TABLE | |||||||||
| Boyut | mm | 2000x1200 | 2500x1200 | 3200x1200 | 4200x1200 | 2000x1600 | 2500x1600 | 3000x1600 | 4000x1600 |
| Tslot (Quantity x Width x Pitch) | 5x22mmx200mm + 2x22mmx100mm | 5x22mmx200mm + 2x22mmx100mm | 5x22mmx200mm + 2x22mmx100mm | 5x22mmx200mm + 2x22mmx100mm | 7x22mmx200mm | 7x22mmx200mm | 7x22mmx200mm | 7x22mmx200mm | |
| Max.Yiik | kg | 4000 | 5000 | 6000 | 8000 | 8000 | 9000 | 10000 | 12000 |
| SPINDLE | |||||||||
| SpindleKoniii(Lseries) | 8140 (Opt.:HSK A63 / 8150 / DIN40 / DIN 50 | 8140 (Opt.:HSK A63 / 8150 / DIN40 / DIN 50 | 8140 (Opt.:HSK A63 / 8150 / DIN40 / DIN 50 | 8140 (Opt.:HSK A63 / 8150 / DIN40 / DIN 50 | 8140 (Opt.: 8150 / DIN40 / DIN 50 | 8140 (Opt.: 8150 / DIN40 / DIN 50 | 8140 (Opt.: 8150 / DIN40 / DIN 50 | 8140 (Opt.: 8150 / DIN40 / DIN 50 | |
| {LGseries) | Bt40(0pt:DIN50) | Bt40(0pt:DIN50) | Bt40(0pt:DIN50) | Bt40(0pt:DIN50) | 8140(Opt.:DIN50) | 8140(Opt.:DIN50) | 8140(Opt.:DIN50) | 8140(Opt.:DIN50) | |
| Spindle Devri!Lseries) | rpm | Built-in 8140:12000 (Opt.: 15000/ 20000) 8150: 8000(0pt:10000) | Built-in 8140:12000 (Opt.: 15000/ 20000) 8150: 8000(0pt:10000) | Built-in 8140:12000 (Opt.: 15000/ 20000) 8150: 8000(0pt:10000) | Built-in 8140:12000 (Opt.: 15000/ 20000) 8150: 8000(0pt:10000) | Built-in8140:12000 (Opt: 15000) 8150:8000 (Opt.: 10000) | Built-in8140:12000 (Opt: 15000) 8150:8000 (Opt.: 10000) | Built-in8140:12000 (Opt: 15000) 8150:8000 (Opt.: 10000) | Built-in8140:12000 (Opt: 15000) 8150:8000 (Opt.: 10000) |
| {LGseries) | rpm | 2 Steps High-Lowspeed gear head: 6000 (Opt.: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt.: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt.: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt.: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt: 4500) | 2 Steps High-Lowspeed gear head: 6000 (Opt: 4500) |
| Spindle p1(Lseries) | rpm | 8140& HSK A63 : 70,8150 : 100 | 8140& HSK A63 : 70,8150 : 100 | 8140& HSK A63 : 70,8150 : 100 | 8140& HSK A63 : 70,8150 : 100 | 8140 :70,8150:100 | 8140 :70,8150:100 | 8140 :70,8150:100 | 8140 :70,8150:100 |
| {LGseries) | rpm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| RAPID FEED | |||||||||
| Xaxis | mm/min | 20000 | 15000 | 15000 | 15000 | 20000 | 15000 | 15000 | 15000 |
| Y/Z axis | mm/min | 20000/15000 | 20000/15000 | 20000/15000 | 20000/15000 | 20000 I 10000 | 20000 I 10000 | 20000 I 10000 | 20000 I 10000 |
| Cutting feed (X/V) | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1- 7500 | 1- 7500 |
| Ballscrew Dia. & Pitch (X/Y/Z) | mm | 050/45/45, P16/P10/P10 | 050/45/45, P16/P10/P10 | 063/45/45, P30/P10/P10 | 063/45/45, P30/P10/P10 | 063/63/50, P25/20/10 | 063/63/50, P25/20/10 | 063/63/50, P25/20/10 | 080/63/50, P25/20/10 |
| Ballscrew transmission way(X/Y/Z) | Direct/Direct/Beltdriven | Direct/Direct/Beltdriven | Bell/Direct/Beltdriven | Bell/Direct/Beltdriven | Gear/Direct/Belt driven | Gear/Direct/Belt driven | Gear/Direct/Belt driven | Gear/Direct/Belt driven | |
| ATC | |||||||||
| Takım Sayısı | pcs | 32(0pt.:40) | 32(0pt.:40) | 32(0pt.:40) | 32(0pt.:40) | 32(0pt.:40) | 32(0pt.:40) | 32(0pt.:40) | 32(0pt.:40) |
| Max. tool dia. | mm | 8140 & HSK A63 :75 / 125,8150 : 125/215 | 8140 & HSK A63 :75 / 125,8150 : 125/215 | 8140 & HSK A63 :75 / 125,8150 : 125/215 | 8140 & HSK A63 :75 / 125,8150 : 125/215 | 8140 & HSKA63 :75 / 125, 8150: 125 / 215 | 8140 & HSKA63 :75 / 125, 8150: 125 / 215 | 8140 & HSKA63 :75 / 125, 8150: 125 / 215 | 8140 & HSKA63 :75 / 125, 8150: 125 / 215 |
| Max.Tak,m uzunlugu | mm | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 | 8140 & HSK A63 : 250,8150: 350 |
| Max,Tak1m ag1rllg1 | kg | 8140 & HSK A63 : 7, 8150 : 20 | 8140 & HSK A63 : 7, 8150 : 20 | 8140 & HSK A63 : 7, 8150 : 20 | 8140 & HSK A63 : 7, 8150 : 20 | 8140& HSKA63: 7,8150: 20 | 8140& HSKA63: 7,8150: 20 | 8140& HSKA63: 7,8150: 20 | 8140& HSKA63: 7,8150: 20 |
| Pull stud.spec. | 8140: MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140: MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140: MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140: MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140 : MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140 : MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140 : MAS403 P40T-1,8150 : MAS403 P50T-1 | 8140 : MAS403 P40T-1,8150 : MAS403 P50T-1 | |
| MOTOR | |||||||||
| SpindleMotor!Lserisi) | kW | 8140 & HSKA63: 11/18,5(Conl./10min) (Fanuc oB112S) 814018,5/22(Cont./25%) (Fanuc aB112L) | 8140 & HSKA63: 11/18,5(Conl./10min) (Fanuc oB112S) 814018,5/22(Cont./25%) (Fanuc aB112L) | 8140 & HSKA63: 11/18,5(Conl./10min) (Fanuc oB112S) 814018,5/22(Cont./25%) (Fanuc aB112L) | 8140 & HSKA63: 11/18,5(Conl./10min) (Fanuc oB112S) 814018,5/22(Cont./25%) (Fanuc aB112L) | 18,5/22(Conl./25%)(FanucaB112L) | 18,5/22(Conl./25%)(FanucaB112L) | 18,5/22(Conl./25%)(FanucaB112L) | 18,5/22(Conl./25%)(FanucaB112L) |
| (LGserisi) | kW | 18,5/22(Conl./30min)(FanucA18/70001) | 18,5/22(Conl./30min)(FanucA18/70001) | 18,5/22(Conl./30min)(FanucA18/70001) | 18,5/22(Conl./30min)(FanucA18/70001) | 18,5/22(Conl./30min)(FanucA18/7000I) | 18,5/22(Conl./30min)(FanucA18/7000I) | 18,5/22(Conl./30min)(FanucA18/7000I) | 18,5/22(Conl./30min)(FanucA18/7000I) |
| Max.Tork(lserisi) | Nm | 8140 & HSK A63: 60,8150: 118 | 8140 & HSK A63: 60,8150: 118 | 8140 & HSK A63: 60,8150: 118 | 8140 & HSK A63: 60,8150: 118 | 118 | 118 | 118 | 118 |
| (LGserisi) | Nm | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm : 752) |
| ServoMotorX/Y/Z!FANUC) | kW | 7/4/4/(A30/A22/A228) | 7/4/4/(A30/A22/A228) | 7/4/4/(A30/A22/A228) | 6/4/4/(A40/A22/A22B) | 7n///(A30/A30/A30B) | 7n///(A30/A30/A30B) | 7n///(A30/A30/A30B) | |
| Coolant pump | kW | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 |
| ACCURACY | |||||||||
| PozisyonHassasiyeti(JIS6338) | mm | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length | ±0.005/300mm,±0.015Total length |
| PozisyonHassasiyeti(VOl3441) | mm | P0.020 | P 0.0025 | P 0.0025 | P0.030 | P0.020 | P0.025 | P0.025 | P0.030 |
| Dairesllik(JIS6338) | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Dairesellik (VOl3441) | mm | Ps0.015 | Ps0.020 | Ps0.020 | Ps0.025 | Ps0.015 | Ps0.020 | Ps0.020 | Ps0.025 |
| OTHER | |||||||||
| GU kapasitesi | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | 50kVA, 220V, 3 phase 50/60 | |
| Hava miktan | kg/cm1 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Coolant tank capacity | liter | 380 | 380 | 550 | 550 | 550 | 550 |
||
| Guidewayineachaxis | X Linear guide way + Y&Z Box way | X Linear guide way + Y&Z Box way | X Linear guide way + Y&Z Box way | X Linear guide way + Y&Z Box way | X: 2pcs of roller type Linear guide way, Y: 2pcs of roller type Linear guideway, Z:Box way | X: 2pcs of roller type Linear guide way, Y: 2pcs of roller type Linear guideway, Z:Box way | X: 2pcs of roller type Linear guide way, Y: 2pcs of roller type Linear guideway, Z:Box way | X: 2pcs of roller type Linear guide way, Y: 2pcs of roller type Linear guideway, Z:Box way |
|
| Makinaboyu | mm | 6230 | 7130 | 8230 | 10260 | 6300 | 7300 | 8300 | 10500 |
| Makinaeni | mm | 4430 X 3975 | 4430 X 3975 | 4430 X 3975 | 4430 X 3975 | 4950x4700 | 4950x4700 | 4950x4700 | 4950x4700 |
| Makinaag1rlrg1 | kg | 13000 | 19000 | 22000 | 26000 | 23000 | 25000 | 28000 | 33000 |
| Model | Unit | FG-3225L/LG | FG-4225L/LG | FG-5225L/LG | FG-6225L/LG | FG-4231L/LG | FG-5231L/LG | FG-6231L/LG | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Distance between columns | mm | 2500 | 2500 | 2500 | 2500 | 3100 | 3100 | 3100 | ||
| X axis | mm | 3200 | 4200 | 5200 | 6200 | 4200 | 5200 | 6200 | ||
| Yaxis | mm | 2500 | 2500 | 2500 | 2500 | 2100 | 2100 | 2100 | ||
| Z axis | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | ||
| Spindle nose to table surface (Lseries) | mm | B140 : 165 -1165. B150 : 150 - 1150 | B140 : 165 -1165. B150 : 150 - 1150 | B140 : 165 -1165. B150 : 150 - 1150 | B140 : 165 -1165. B150 : 150 - 1150 | 150- 1150 | 150- 1150 | 150- 1150 | ||
| (LG series) | mm | 225- 1225 | 225- 1225 | 225- 1225 | 225- 1225 | 225- 1225 | 225- 1225 | 225- 1225 | ||
| WORK TABLE | ||||||||||
| Size | mm | 3000x2000 | 4000x2000 | 5000x2000 | 6000x2000 | 4000x2500 | 5000x2500 | 6000x2500 | ||
| T-slot(Quantity x Width x Pitch) | 9x22mmx200mm | 9x22mmx200mm | 9x22mmx200mm | 9x22mmx200mm | 13x22mmx200mm | 13x22mmx200mm | 13x22mmx200mm | |||
| Max. Rermissible loading | kg | 12000 | 15000 | 18000 | 20000 | 15000 | 18000 | 20000 | ||
| SPINDLE | ||||||||||
| Spindle taper (L series) | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | 100 | 100 | 100 | |||
| (LG series) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| Spindle speed (L series) | rpm | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | Bt40 (Opt: Bt50 / DIN40 / DIN 50 | 8140 (Opt:DIN50) | 8140 (Opt:DIN50) | 8140 (Opt:DIN50) | ||
| (LG series) | rpm | 2 Steps High-Low speed gear head: 6000 (Opt.: 4500) | 2 Steps High-Low speed gear head: 6000 (Opt.: 4500) | 2 Steps High-Low speed gear head: 6000 (Opt.: 4500) | 2 Steps High-Low speed gear head: 6000 (Opt.: 4500) | 2 Steps High-Low speed gear head: 6000 (Opt 4500) | 2 Steps High-Low speed gear head: 6000 (Opt 4500) | 2 Steps High-Low speed gear head: 6000 (Opt 4500) | ||
| Spindle diameter (L series) | mm | Bt40: 70, Bt50: 100 | Bt40: 70, Bt50: 100 | Bt40: 70, Bt50: 100 | Bt40: 70, Bt50: 100 | 100 | 100 | 100 | ||
| (LG series) | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| RAPID FEED | ||||||||||
| X axis | mm/min | 15000 | 12000 | 10000 | 7500 | 12000 | 10000 | 7500 | ||
| Y/Z axis | mm/min | 15000 / 10000 | 15000 / 10000 | 15000 / 10000 | 15000 / 10000 | 12000 / 10000 | 12000 / 10000 | 12000 / 10000 | ||
| Cutting feed (X/Y) | mm/min | 1- 7500 | 1- 7500 | 1-5000 | 1-5000 | 1-7500 | 1-7500 | 1-5000 | ||
| Ballscrew Dia. & Pitch (XN/Z) | mm | °63/63/50, P25/20/10 | °80/63/50, P25/20/10 | °80/63/50, P25/20/10 | °80/63/50, P30/20/10 | °80/63/50, P25/20/10 | °80/63/50, P25/20/10 | °80/63/50, P30/20/10 | ||
| Ballscrew transmissionway (X!Y/Z) | Gear/Direct/Belt driven | Gear/Direct/Belt driven | Gear/Direct/Belt driven | Gear/Direct/Belt driven | Gear/Belt/Belt driven | Gear/Belt/Belt driven | Gear/Belt/Belt driven | |||
| ATC | ||||||||||
| Tool number | pcs | 32 I Opt.:40) | 32 I Opt.:40) | 32 I Opt.:40) | 32 I Opt.:40) | 32 I Opt.:40) | 32 I Opt.:40) | 32 I Opt.:40) | ||
| Max. tool dia./ Without adjacent tool | mm | Bt40& HSKA63 :75/125, Bt50: 125/215 | Bt40& HSKA63 :75/125, Bt50: 125/215 | Bt40& HSKA63 :75/125, Bt50: 125/215 | Bt40& HSKA63 :75/125, Bt50: 125/215 | 125/215 | 125/215 | 125/215 | ||
| Max. tool length | mm | Bt40 & HSK A63 : 250,Bt50: 350 | Bt40 & HSK A63 : 250,Bt50: 350 | Bt40 & HSK A63 : 250,Bt50: 350 | Bt40 & HSK A63 : 250,Bt50: 350 | 350 | 350 | 350 | ||
| Max. tool weight | kg | Bt40 & HSKA63: 7, Bt50 : 20 | Bt40 & HSKA63: 7, Bt50 : 20 | Bt40 & HSKA63: 7, Bt50 : 20 | Bt40 & HSKA63: 7, Bt50 : 20 | 20 | 20 | 20 | ||
| Pull stud. spec. | Bt40: MAS403 P40T-1,Bt50: MAS403 P50T-1 | Bt40: MAS403 P40T-1,Bt50: MAS403 P50T-1 | Bt40: MAS403 P40T-1,Bt50: MAS403 P50T-1 | Bt40: MAS403 P40T-1,Bt50: MAS403 P50T-1 | MAS403 P50T-1(Opt.:DIN69872 Farm A) | MAS403 P50T-1(Opt.:DIN69872 Farm A) | MAS403 P50T-1(Opt.:DIN69872 Farm A) | |||
| MOTOR | ||||||||||
| Spindle Motor (L series) | kW | 18,5/22 (Conl./25%) (Fanuc aB112L) | 18,5/22 (Conl./25%) (Fanuc aB112L) | 18,5/22 (Conl./25%) (Fanuc aB112L) | 18,5/22 (Conl./25%) (Fanuc aB112L) | 18,5/22 (Conl./25%)(Fanuc oB112L) | 18,5/22 (Conl./25%)(Fanuc oB112L) | 18,5/22 (Conl./25%)(Fanuc oB112L) | ||
| (LG series) | kW | 18,5/22 (Conl./30min) (FanucA18/7000I) | 18,5/22 (Conl./30min) (FanucA18/7000I) | 18,5/22 (Conl./30min) (FanucA18/7000I) | 18,5/22 (Conl./30min) (FanucA18/7000I) | 18,5/22 (Conl./30min) (FanucA18/7000I) | 18,5/22 (Conl./30min) (FanucA18/7000I) | 18,5/22 (Conl./30min) (FanucA18/7000I) | ||
| Max. torque (Lserisi) | Nm | 118 | 118 | 118 | 118 | 118 | 118 | 118 | ||
| (LG series) | Nm | 6000rpm : 564(0pt: 4500rpm : 752) | 6000rpm : 564(0pt: 4500rpm : 752) | 6000rpm : 564(0pt: 4500rpm : 752) | 6000rpm : 564(0pt: 4500rpm : 752) | 6000rpm : 564(0pt.: 4500rpm: 752) | 6000rpm : 564(0pt.: 4500rpm: 752) | 6000rpm : 564(0pt.: 4500rpm: 752) | ||
| Servo Motor XNIZ (FANUC) | kW | 7 /7 /7(A30/A30/A30B) | 6/7/7/(A40/A30/A30B) | 6/7/7/(A40/A30/A30B) | 6/7/7/(A40/A30/A30B) | 6/7/7/(A40/A30/A30B) | 6/7/7/(A40/A30/A30B) | 6/7/7/(A40/A30/A30B) | ||
| Coolant pump | kW | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 | 0,75 | ||
| ACCURACY | ||||||||||
| Positioning (JIS 6338) | mm | ±0.005/300 mm, ±0.015 Total length | ±0.005/300 mm, ±0.015 Total length | ±0.005/300 mm, ±0.015 Total length | ±0.005/300 mm, ±0.015 Total length | ±0.005/300 mm, ±0.015 Total length | ±0.005/300 mm, ±0.015 Total length | ±0.005/300 mm, ±0.015 Total length | ||
| Positioning (VOi 3441) | mm | P 0.025 | P 0.030 | P 0.040 | P 0.050 | P 0.025 | P 0.030 | P 0.040 | ||
| Repeatability (JIS 6338) | mm | |||||||||
| Repeatability (VOi 3441) | mm | Ps 0.020 | Ps 0.025 | Ps 0.030 | Ps 0.035 | Ps 0.020 | Ps 0.025 | Ps 0.030 | ||
| OTHER | ||||||||||
| Powercapacity | 65kVA, 220V, 3 phase 50/60 | 65kVA, 220V, 3 phase 50/60 | 65kVA, 220V, 3 phase 50/60 | 65kVA, 220V, 3 phase 50/60 | 65kVA, 220V, 3 phase 50/60 | 65kVA, 220V, 3 phase 50/60 | 65kVA, 220V, 3 phase 50/60 | |||
| Pneumatic pressure required | kg/cm2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||
| Coolant tankcapacity | liter | 660 | 660 | 660 | 660 | 750 | 750 | 750 | ||
| X: 2pcs of roller type Linear guide way, | X: 2pcs of roller type Linear guide way, | X: 2pcs of roller type Linear guide way, | X: 2pcs of roller type Linear guide way, | X: 4pcs of roller type Linear guide way, | X: 4pcs of roller type Linear guide way, | X: 4pcs of roller type Linear guide way, | ||||
| Guide way in each axis | Y: 2pcs of roller type Linear guide way, Z: Box way | Y: 2pcs of roller type Linear guide way, Z: Box way | Y: 2pcs of roller type Linear guide way, Z: Box way | Y: 2pcs of roller type Linear guide way, Z: Box way | Y: 2pcs of roller type Linear guide way Z: Box way | Y: 2pcs of roller type Linear guide way Z: Box way | Y: 2pcs of roller type Linear guide way Z: Box way | |||
| Machine size (Length) | 8365 | 10500 | 12550 | 14750 | 11000 | 13000 | 15000 | |||
| Machine size (Widht x Height) | 5450 X 4700 | 5450 X 4700 | 5450 X 4700 | 5450 X 4700 | 6050 X 4800 | 6050 X 4800 | 6050 X 4800 | |||
| Machine weight | kg | 33000 | 38000 | 45000 | 52000 | 43000 | 50000 | 57000 |
